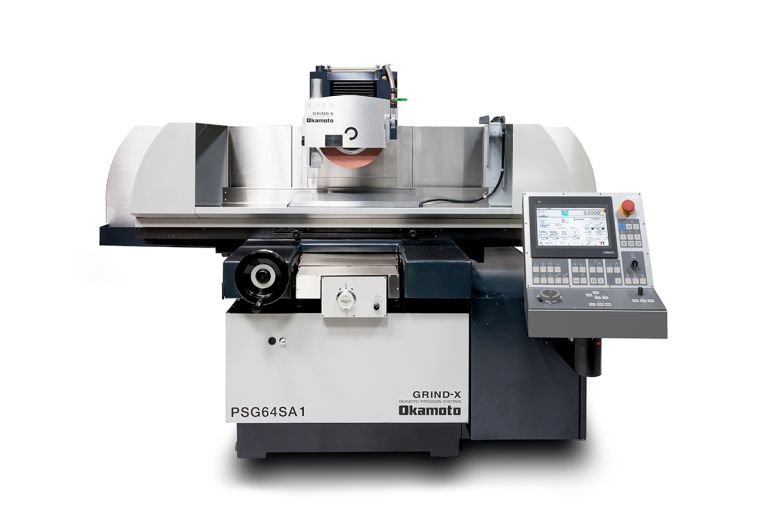

Precision Surface Grinding Machine PSG-SA1 series

SERIES line-up

PSG52SA1・PSG63SA1・PSG64SA1・PSG65SA1・PSG84SA1・PSG85SA1・PSG105SA1

Concept

Successor to the popular PSG-DX series! Support users with a large touch panel, automatic dress, and self-management function!

Feature

Successor to PSG-DX Series: Enhanced operability by transitioning from a select switch interface to an intuitive touch panel operation.
  • Automatic Grinding Cycle: The standard cycle includes "Rough Processing ⇒ Precision Processing ⇒ Sparkout," with integrated dressing functionality during the cycle.
  • Touch Panel Interface: Replaces traditional alarm number displays with clear language-based messages and features a self-diagnostic function for monitoring part operation and simplifying maintenance.
  • Durable Stainless Steel Covers: Standard stainless steel covers extend the machine's longevity and protect critical components.
  • External Pump and Tank Placement: Lubrication and hydraulic pumps, along with the external tank, minimize thermal displacement and reduce vibration.
  • Improved Cross-Feed Accuracy: The adoption of a servo motor drive significantly enhances cross-feed positioning precision.

Uses of Precision Surface Grinding Machine PSG-SA1 Series


  • High-Precision Component Manufacturing:
    • Delivers exceptional surface finishes and tight tolerances, making it ideal for producing intricate parts in industries like aerospace and automotive.
  • Tool and Die Making:
    • Ensures accurate shaping and finishing of tools, molds, and dies with superior precision for consistent production quality.
  • Flat Surface Grinding:
    • Optimized for creating perfectly flat surfaces on various materials, including metals, ceramics, and composites.
  • Machine Part Refurbishment:
    • Suitable for reconditioning and restoring worn components to their original specifications, extending their usability.
  • Medical Device Production:
    • Facilitates the manufacturing of surgical instruments and implants with smooth, biocompatible finishes.
  • Electronic Component Grinding:
    • Provides the flatness and accuracy required for semiconductors, circuit boards, and other electronic devices.
  • Automotive Part Finishing:
    • Used for grinding engine components, transmission parts, and other critical automotive elements with precision.
  • Research and Development:
    • Supports experimental machining and prototyping for industries that demand precision and quality.
The PSG-SA1 Series is designed to handle these applications efficiently, offering reliability and performance for high-demand operations.
