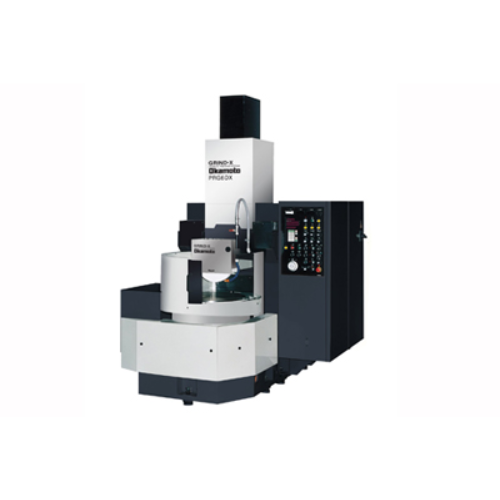

Precision Rotary Grinding Machine PRG-DX series

SERIES line-up

PRG6DX・PRG8DX

Concept

Original controller achieved 0.1µｍ infeed and is easy to operate.

Feature

  • Stable Infeed and High Precision: The adoption of a double-column (bridge) structure ensures exceptional stability and precision during grinding operations.
  • Easy Loading and Unloading: The spindle unit traverses the column slideway, allowing for a lower table position and a wide, open chuck area. This design facilitates effortless loading and unloading of workpieces.
  • User-Friendly Table Design: The table is positioned lower for convenience, widened, and features an open design to simplify operation and accommodate larger workpieces.
  • Advanced Controller for Precision Infeed: A proprietary controller manages vertical and cross-infeed using an AC servo motor, providing precise adjustments with a minimum vertical infeed setting of 0.1 μm.
  • Fully Automatic Grinding Cycle: Includes Coarse Grinding → Fine Grinding → Spark-Out → Peripheral End Step, ensuring seamless and efficient operation.
  • Customizable Parameters During Automatic Cycle: Operators can adjust down-feed step amounts, table rotation speed, total remaining grinding allowance, and table speed variability during the cycle, with step-less table speed control for maximum flexibility.

Uses of the Precision Rotary Grinding Machine PRG-DX Series


  • The Precision Rotary Grinding Machine PRG-DX series is designed to deliver exceptional accuracy and efficiency in surface grinding applications. Its advanced rotary grinding capabilities make it highly versatile and suitable for a wide range of industrial uses:
    1. High-Precision Surface Grinding for Circular and Rotational Components
      • Ideal for grinding round components such as gears, rings, and bearings.
      • Ensures high flatness, parallelism, and precision for circular parts.

    1. Grinding of Complex Profiles and Shapes
      • Capable of handling intricate profiles and shapes with precision, supporting industries like toolmaking and mold production.

    1. Enhanced Surface Finish for Critical Applications
      • Produces ultra-smooth surfaces required for optical, semiconductor, and medical device components.
      • Supports high-spec finishes for parts used in demanding applications.

    1. Large-Diameter Workpiece Processing
      • Designed to accommodate larger-diameter workpieces, making it suitable for applications like turbine discs, engine components, and other oversized parts.
    ,bR>
    1. Precision Grinding for Thin and Delicate Parts
      • The PRG-DX series can grind thin, fragile, or heat-sensitive parts with minimal deformation, ensuring consistent quality.

    1. Manufacturing of High-Performance Bearings and Rings
      • Frequently used in the production of precision bearings, sealing rings, and other rotational components requiring tight tolerances.

    1. Tool and Die Making
      • Essential for creating and maintaining dies, punches, and tools with precise geometries and smooth finishes.

    1. Support for Advanced Materials
      • Effectively grinds advanced materials such as ceramics, composites, and hard metals used in aerospace, automotive, and electronics industries.

    1. Automotive and Aerospace Component Production
      • Widely used in grinding components like valve plates, brake discs, and turbine parts for superior flatness and dimensional accuracy.

    1. Efficient Batch Processing
      • Suitable for batch production of small to medium-sized components with high consistency and repeatability.
    >
    1. Research and Development Applications
      • Ideal for prototyping and material testing in R&D environments, offering flexibility for innovative design requirements.

    1. Industrial Component Refurbishment
      • Used in refurbishing and regrinding worn parts to restore original specifications and extend component life.
      The PRG-DX series stands out for its precision, flexibility, and reliability, making it an indispensable asset in industries requiring high-performance rotary grinding solutions.
