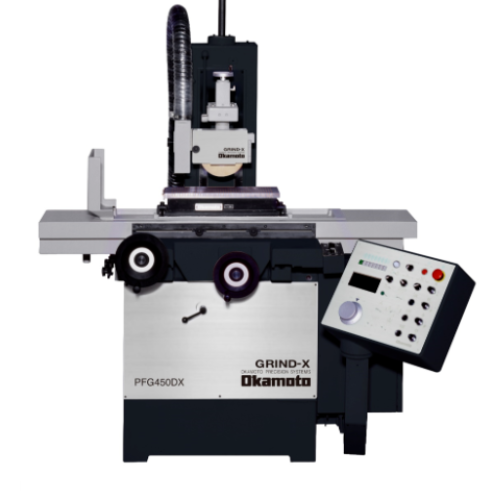

Precision Form Grinding Machine PFG450DX series

SERIES line-up

PFG450DXA・PFG450DXB・PFG450DXC

Concept

PFG450DX series has been developed as a precision form grinder of small fine shape and complex shape parts, such as mould parts.

Feature

  • Purpose-Based Specifications: The machine offers three specification types tailored to specific grinding needs:
    1. PFG450DXA: Fully automatic with longitudinal, crossfeed, and vertical functions.
    2. PFG450DXB: Semi-automatic with longitudinal and crossfeed functions.
    3. PFG450DXC: Basic automatic operation with longitudinal functionality only.

  • Advanced Capabilities (PFG450DXA): The PFG450DXA performs a comprehensive grinding cycle, including:
    1. Coarse grinding
    2. Fine grinding
    3. Spark-out (adjustable 0–5 times)
    4. Automatic table return to the right-end stop

Uses of the Precision Form Grinding Machine PFG450DX Series

  • High-Precision Surface Finishing
    • Delivers exceptional accuracy in finishing flat and contoured surfaces for industries such as aerospace, automotive, and mould manufacturing.

  • Die and Mold Production
    • Ideal for producing intricate forms and precision moulds required in injection moulding and stamping processes.

  • Tool and Cutter Grinding
    • Ensures sharp, precise tools for cutting applications, maintaining efficiency and longevity of tools.

  • Component Polishing
    • Used for polishing machine parts, electronic components, and other metal components to achieve mirror-like finishes.

  • Precision Grinding of Complex Shapes
    • Handles challenging geometries with consistent accuracy, suitable for industries requiring tight tolerances.

  • Material Versatility
    • Efficiently grinds a wide range of materials, including steel, cast iron, and advanced composites
