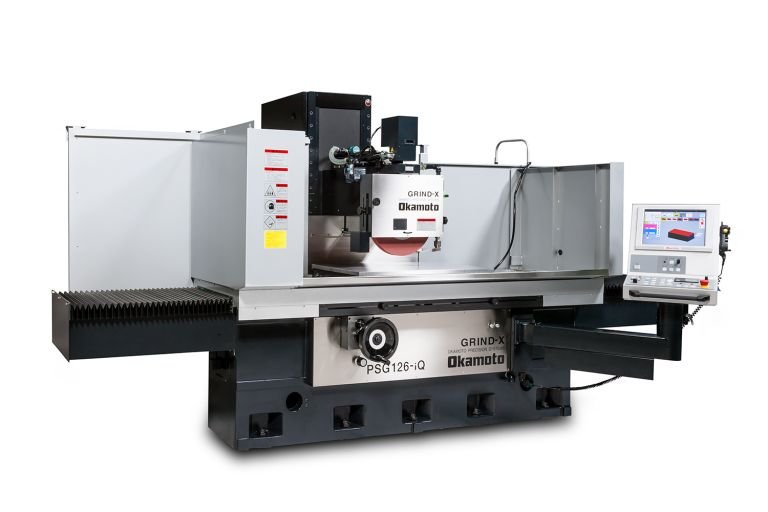

NC Precision Surface Grinding Machine PSG-iQ series

SERIES line-up

PSG126-iQ・PSG156-iQ・PSG206-iQ・PSG306-iQ・PSG157-iQ

Concept

Equipped with an automatic setting function of grinding and dress condition, saving of the data input time by graphical screen display.

Feature

  • User-Friendly Touchscreen Operation: The operation screen is designed without complex characters, ensuring an intuitive touch-and-input interface for effortless use.
  • Automatic Program Creation with CA-iQ Series: The CA-iQ series introduces an innovative automatic program-making function for surface grinders. Users simply input the total stock removal amount and grinding wheel grit, and the machine automatically determines optimal grinding and dressing conditions.
  • Versatile Grinding Capabilities: The machine supports multiple grinding methods, including surface grinding, pitch grinding, contouring grinding, and form grinding, offering flexibility for diverse applications.
  • Enhanced Efficiency with Dual Dressing Options: Achieve reduced cycle times by combining coarse grinding with an optional overhead dresser and finish grinding using a table-mounted dresser.

Uses of the NC Precision Surface Grinding Machine PSG-iQ Series

The PSG-iQ Series NC Precision Surface Grinding Machine is designed to deliver exceptional precision, efficiency, and versatility. Its cutting-edge features cater to a variety of industries, making it a reliable solution for high-precision grinding tasks. Below are some of its key applications:
  1. Ultra-Precise Surface Grinding The PSG-iQ series excels at achieving ultra-smooth and flat surface finishes. This makes it ideal for industries like aerospace, automotive, and electronics where precision is paramount.
  2. Complex Shape Grinding With advanced NC programming, the PSG-iQ series can handle intricate geometries and contours with ease. It is widely used for producing custom parts and prototypes that require high dimensional accuracy.
  3. Pitch and Contouring Grinding This machine supports specialized grinding methods, such as pitch and contouring, enabling the creation of unique designs and surface patterns tailored to specific industrial needs.
  4. Tool and Die Manufacturing The PSG-iQ series is a trusted tool in manufacturing dies and molds. Its precision and reliability ensure the creation of high-quality components used in stamping, forging, and injection molding.
  5. Formed Grinding For industries requiring formed surfaces, such as those in the medical and semiconductor fields, the PSG-iQ series provides accurate grinding of specialized shapes and configurations.
  6. Reduction of Cycle Time The PSG-iQ series minimizes production time by integrating coarse and fine grinding processes. The combination of an overhead dresser and a table-mounted dresser further enhances efficiency, reducing downtime and increasing productivity.
  7. Material Removal and Finishing This machine is designed for both heavy material removal and fine-finishing tasks, making it suitable for manufacturing optical components, precision instruments, and high-quality mechanical parts.
  8. Automatic Programming for Simplified Operation The CA-iQ series' program-making function in the PSG-iQ series automates grinding settings. By inputting the total stock removal amount and wheel grit, the machine optimizes grinding and dressing conditions, simplifying the operator's task.
  9. Manufacturing of Micro and Nano Components The machine's precision capabilities are perfect for producing micro and nano-scale components, especially for industries like medical devices and advanced electronics.
  10. Research and Development Applications The PSG-iQ series is a valuable tool for R&D laboratories exploring new materials and designs. Its flexibility allows for experimentation while maintaining precision and consistency.
