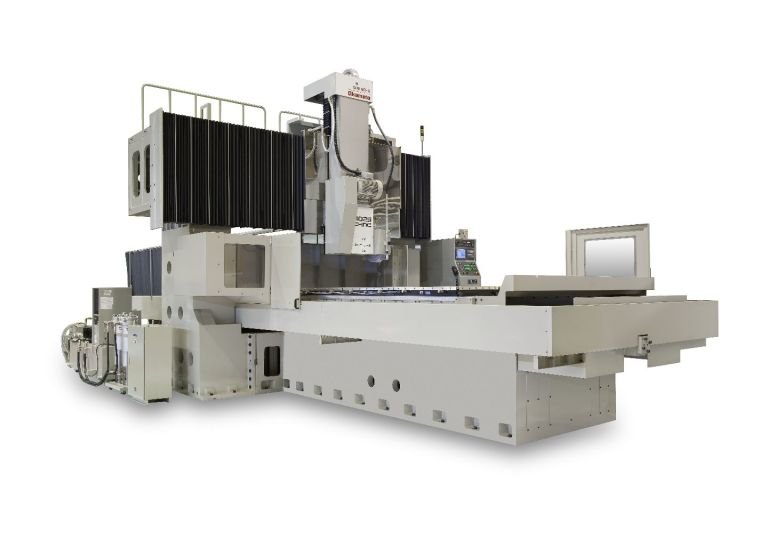

CNC Double Column Type Surface Grinding Machine PSG-CHNC,CHVNC series

SERIES line-up

PSG2010CHNC・PSG3010CHNC・PSG2015CHNC・PSG3015CHNC・PSG4015CHNC・ PSG3020CHNC・PSG4020CHNC Complex machine line-up Swivel Spindle specification machine PSG-CVNC(V: Vertical ) 2-Spindle specification machine PSG-CHVNC(HV:Horizontal＆Vertical)

Concept

Widely Line-up Double Column Type Surface Grinding Machine series.

Feature

  • Equipped with a mechanical adjustment mechanism, the cross rail ensures straightness and accommodates crowning grinding to counteract bending caused by head travel. This feature allows for precise fine-tuning before final assembly and provides the advantage of correcting aging-related errors even after installation.
  • The CHNC series is a compact and versatile machine designed to meet a wide range of customer demands.
  • For applications requiring a superior finish, such as high-end products like photo masks and coating dies, we also offer polishing and lapping machines as alternatives to standard grinding.

Uses of CNC Double Column Type Surface Grinding Machines (PSG-CHNC, CHVNC Series)


      1. Precision Surface Grinding for Large Workpieces
        • Designed for handling large components with high precision, ideal for industries requiring consistent flatness and surface quality.
      2. Mould and Die Manufacturing
        • Ensures smooth surface finishes for molds and dies used in automotive, electronics, and consumer goods production.
      3. High-Performance Machine Parts Production
        • Suitable for creating highly accurate machine components, improving durability and performance across various industries.
      4. Metal Sheet Finishing
        • Provides uniform grinding for metal sheets, enhancing surface aesthetics and reducing defects for applications like aerospace and heavy machinery.
      5. Flat Panel Processing
        • Perfect for finishing flat panels such as those used in semiconductor equipment, LCD panels, and high-tech applications.
      6. Repair and Resurfacing Applications
        • Offers the capability to restore worn or damaged surfaces on critical equipment, reducing downtime and extending lifespan.
      7. Crowning and Camber Adjustment
        • Specialized functions allow for crowning and camber adjustments to address bending and other imperfections in workpieces.
      8. Tool and Cutter Sharpening
        • Delivers precise grinding for sharpening cutting tools, ensuring consistent cutting performance.
      9. Advanced Manufacturing for High-End Products
        • Ideal for industries like optical equipment and medical devices where extreme accuracy and superior finishes are required.
      10. Polishing and Lapping Alternatives
        • When paired with polishing or lapping machines, the PSG-CHNC and CHVNC series meet ultra-fine finishing needs for applications such as photo masks and coating dies.
These machines excel in delivering versatility, high precision, and the ability to handle demanding tasks across diverse industries.
