Internal Grinding NC Precision Machine IGM-EXⅢ series

SERIES line-up

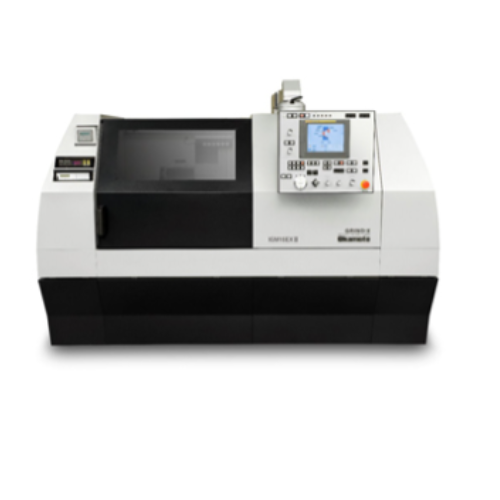

IGM15EXⅢ

Concept

Graphical type conversational software for easy automatic grinding data editing.

Feature


  • Automated Grinding Process Optimization: Includes an automatic data function to determine optimal dressing and grinding conditions based on wheel grit, wheel width, and final sizing parameters.
  • Extensive Data Storage: Supports storage of up to 21 grinding wheel and workpiece data sets, enabling quick and efficient setup for recurring tasks.
  • Intuitive Touchscreen Interface: Features a user-friendly touch screen for easy data input, reducing reliance on physical switches and streamlining operation.
  • Enhanced Stability and Precision: Equipped with a standard table enclosure, AC spindle motor, and AC servo motor for the work spindle. The table enclosure ensures a stable grinding condition and consistent accuracy in various working environments.

Uses of the Internal Grinding NC Precision Machine IGM-EXⅢ Series


  • The IGM-EXⅢ Series Internal Grinding NC Precision Machine is a groundbreaking solution for industries seeking ultra-precise internal grinding applications. With its advanced technology and adaptability, this machine is engineered to meet the most demanding production requirements. Below are the key uses and benefits of the IGM-EXⅢ Series:
    1. Precision Grinding of Internal Surfaces The IGM-EXⅢ excels in machining high-accuracy internal diameters, bores, and cylinders. This makes it indispensable for industries requiring components with extremely tight tolerances, such as aerospace, medical, and automotive sectors.

    2. Complex Geometry Grinding Capable of handling intricate internal profiles, this machine supports grinding operations on components with non-linear shapes, such as contours, grooves, and recesses. This flexibility is ideal for industries manufacturing advanced components.

    3. Manufacturing High-Performance Bearings The IGM-EXⅢ is tailored for producing precision bearings with flawless inner surfaces. This ensures longer operational life and superior performance in applications where bearing efficiency is critical.

    4. Tool and Die Making This series provides unmatched accuracy for grinding internal features of tools, moulds, and dies, contributing to high-quality production in industries like electronics, injection moulding, and stamping.

    5. Enhanced Surface Finish Quality The machine's advanced control systems and cutting-edge technology deliver superior surface finishes, meeting the requirements for aesthetic and functional precision in critical applications.

    6. Customizable Solutions for Diverse Materials Whether working with hardened steel, ceramics, or exotic alloys, the IGM-EXⅢ provides versatility across a wide range of materials, ensuring precise internal grinding for all types of components.
      7. Multi-Purpose Applications in Automotive Manufacturing From precision pistons to gear hubs, this machine is pivotal in automotive production, delivering reliability and consistency in parts that demand absolute precision.

    7. Optimized for Mass Production and Prototyping The IGM-EXⅢ adapts seamlessly to both mass production and prototyping environments. Its intuitive NC controls enable efficient setups and minimal downtime, ensuring productivity remains high.

    8. High-Speed Precision for Medical Devices This series is a go-to solution for manufacturing intricate internal features of medical devices, such as implants and surgical tools, where precision is paramount.

    9. Aerospace Component Fabrication In aerospace, where every component must meet strict safety and performance standards, the IGM-EXⅢ delivers unparalleled precision for internal grinding of engine parts and structural elements.
