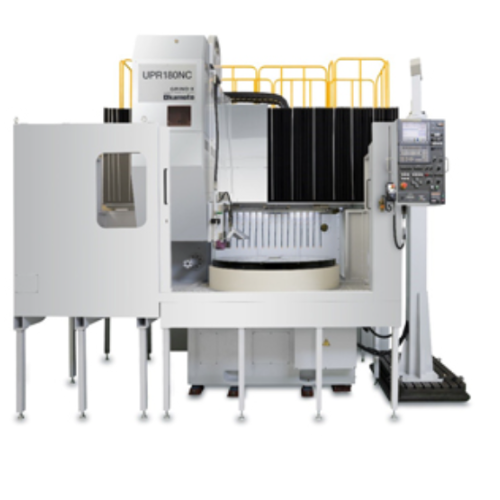

CNC Ultra Precision Rotary Grinding Machine UPR18NC

SERIES line-up

UPR3NC・UPR18NC

Concept

For high accuracy gap grinding with super high speed spindle unit, CD Rom die and precision blade, which are optimum for circular grinding.

Feature

    • The variable hydrostatic slide system and air-bearing table deliver exceptional flatness and parallelism of 0.3μm over a diameter of 300mm.

    • The advanced air bearing technology ensures outstanding radial and axial rotation accuracy of 0.05μm.

    • The vertical down-feed precision reaches an impressive minimum increment of 10 nanometers (10nm).


Uses of the CNC Ultra Precision Rotary Grinding Machine UPR18NC

The CNC Ultra Precision Rotary Grinding Machine UPR18NC is a high-performance grinding solution tailored to meet the advanced demands of precision industries. With its superior accuracy, efficient automation, and exceptional versatility, this machine has become a cornerstone in modern manufacturing. Here are the key uses of the UPR18NC:

Unparalleled Precision for Large Components

The UPR18NC offers high precision in rotary surface grinding, especially for larger components. It ensures flawless flatness and surface uniformity, making it ideal for industries requiring critical tolerances.

Exceptional Material Removal Capability

This machine excels in rapid material removal while maintaining exacting accuracy. It is particularly effective in processing hard-to-machine materials such as tungsten carbide, ceramics, and hardened steels.

Large-Scale Surface Finishing

The UPR18NC is designed for high-quality surface finishing on larger workpieces. Its advanced controls ensure uniform grinding results, even for components with complex geometries or contours.

Tool and Die Manufacturing

With its precision and efficiency, the UPR18NC is indispensable in the production of molds, dies, and custom tools, where intricate profiles and ultra-smooth finishes are required.

Aerospace Applications

In the aerospace sector, the UPR18NC plays a critical role in crafting engine components, turbine blades, and structural elements with tight tolerances and exceptional finishes.

Automotive Component Production

The machine is widely used for grinding gears, camshafts, and transmission components to exacting specifications, ensuring durability and performance in automotive applications.

Electronics Industry Support

With its ability to handle micro-level precision, the UPR18NC is ideal for producing delicate electronic components, including microchips and circuit board elements.

Medical Equipment Manufacturing

The UPR18NC contributes significantly to the medical field, manufacturing precision parts like surgical tools, implants, and prosthetics that demand flawless accuracy.

Defense and Optics Industries

This machine supports the defense and optics sectors by crafting high-precision optical lenses, mirrors, and components for advanced weaponry and surveillance systems.
