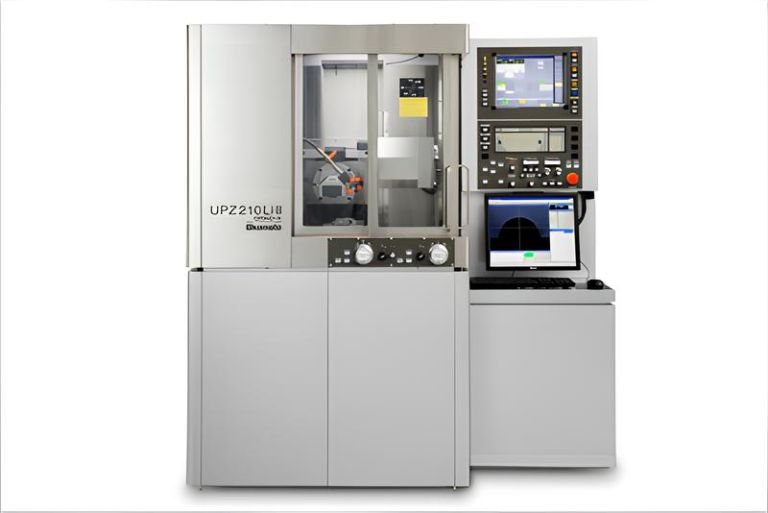

CNC Ultra Precision Form Grinding Machine UPZ210LiⅡ

SERIES line-up

UPZ210LiⅡ

Concept

High Efficiency grinding compatible with Fine Forming Grinding by Ultra Precision Micro Profile Grinding Machine.

Feature

  • The UPZ210LiII is an upgraded precision grinding machine optimized for ultra-fine forming mold parts like connectors, offering enhanced performance and operability.

  • Features a 3-axis linear motor drive for improved positioning accuracy and seamless CAD data integration.

  • Equipped with standard 3D profiling for grinding complex-profile tools.

  • Simplifies programming with G-code creation by selecting start and finish points, eliminating route point teaching.

  • Reduces cycle time with standard plunge and traverse coarse grinding modes.

Uses of the CNC Ultra Precision Form Grinding Machine UPZ210LiⅡ


  • The CNC Ultra Precision Form Grinding Machine UPZ210LiⅡ is engineered for high-precision applications, offering exceptional performance for industries requiring micro-precision components. Its versatility and advanced features make it indispensable for several uses:

    1. Precision Mold and Die Making

    • Produces highly accurate molds and dies for applications like injection molding, stamping, and pressing.
    • Ensures dimensional accuracy and consistent quality for intricate mold designs.

    2. High-Precision Component Manufacturing

    • Used for creating micro-components in industries such as electronics, aerospace, and medical devices.
    • Delivers exceptional precision for parts with complex geometries and tight tolerances.

    3. Semiconductor Industry

    • Ideal for grinding ultra-flat and intricate components like semiconductor wafers and micro-connectors.
    • Ensures flawless surface finishes critical for high-performance electronic devices.

    4. Medical Device Production

    • Crafts high-precision medical tools and components like surgical instruments, prosthetics, and dental implants.
    • Works effectively with biocompatible materials, ensuring safe and reliable products.

    5. Optical Component Manufacturing

    • Produces lenses, mirrors, and prisms with exact curvatures and polished surfaces for optical devices such as microscopes, cameras, and telescopes.

    6. Automotive and Aerospace Applications

    • Used in grinding precision components like engine parts, turbine blades, and control systems.
    • Meets stringent industry standards for performance and safety.

    7. Tool and Cutter Grinding

    • Manufactures specialized cutting tools and precision instruments required for machining and finishing applications.
    • Excels in creating intricate profiles and edges with high accuracy.

    8. Custom and Prototype Production

    • Ideal for short-run production or prototyping of complex parts, especially in R&D environments.
    • Provides flexibility to adapt to diverse project needs.

    9. Advanced Material Processing

    • Effectively handles tough-to-grind materials like carbides, ceramics, and hard metals.
    • Ensures precision and efficiency in grinding high-hardness materials.

    10. Surface Finishing

    • Produces ultra-smooth and flawless surfaces on metal and non-metal materials, enhancing both functionality and aesthetics.
    • Commonly applied to turbine blades, electronic housings, and optical instruments.

    The UPZ210LiⅡ is a versatile machine that combines precision, efficiency, and adaptability, making it essential for industries requiring meticulous and high-quality machining solutions.
