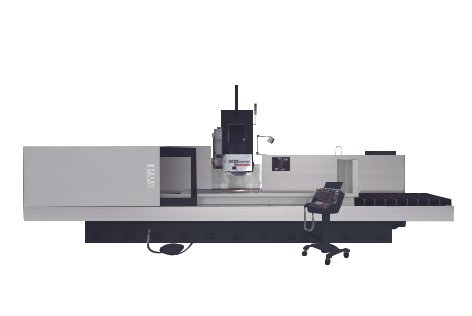

CNC Precision Surface Grinding Machine PSG-DXNC series

SERIES line-up

Concept

Feature

• • Advanced Automatic Cycle Control: The proprietary control system seamlessly manages the entire grinding process, from coarse grinding to fine grinding, spark-out, and table right-end stop, in a fully automated cycle.

• • Efficient Dressing for Tough Materials: For challenging or extremely hard materials, the system allows for dress interruptions during the automatic cycle, making it easy to adjust dressing intervals or air-cut amounts as needed.

• • Versatile Grinding Options with DXNC Series: Custom specifications in the DXNC series enable high-efficiency grinding, machine measurement, multi-grinding capabilities, and variable input through macro programs, offering flexibility for diverse applications.

• • Simultaneous Axis Control for Form Grinding: Achieve precise form grinding with simultaneous control of longitudinal and vertical axes, ensuring optimal solutions for various workpiece requirements.

Uses of the CNC Precision Surface Grinding Machine PSG-DXNC Series

• The UPG-NC Series CNC Ultra Precision Grinding Machine is designed for industries that demand extreme precision, exceptional surface finishes, and advanced grinding capabilities. Its cutting-edge features make it an indispensable tool for high-end manufacturing and research applications. Below are the key uses of the UPG-NC series:
  1. Ultra-Precise Surface Grinding The UPG-NC series is capable of achieving sub-micron precision, delivering flawless surface finishes required for industries like aerospace, electronics, and optical manufacturing.
  2. High-Accuracy Component Manufacturing With straightness accuracy as tight as 0.4 μm/800 mm on the cross axis and below 0.5 μm/m on the longitudinal axis, the machine is ideal for producing ultra-accurate components for sectors such as semiconductors and high-precision machinery.
  3. Grinding for Flatness and Parallelism The UPG-NC series ensures exceptional flatness across workpieces. Testing has shown flatness within 0.5 μm across 24 measured points, making it perfect for applications requiring superior dimensional consistency and parallelism.
  4. Handling Eccentric Loads with Stability The machine's robust design and evaluation-proven performance allow it to maintain accuracy even under eccentric loads, making it ideal for grinding large or irregularly shaped workpieces.
  5. Grinding Hard and Exotic Materials Designed to work with hard and exotic materials such as ceramics, hardened steels, and advanced composites, the UPG-NC series is perfect for industries like medical devices and defense.
  6. Optical and Semiconductor Applications The sub-micron precision of the UPG-NC series makes it suitable for grinding optical lenses, semiconductor wafers, and other micro-scale components where extreme accuracy is required.
  7. Consistent Contact for Improved Surface Finishes By minimizing table float and maintaining consistent table height at reverse points, the machine ensures constant contact with the workpiece, leading to improved surface quality.
  8. Research and Development Applications The UPG-NC series is highly valuable in R&D settings, enabling experimentation with advanced materials and intricate designs for prototyping or testing.
  9. Complex and Intricate Grinding Tasks Its advanced CNC system supports the grinding of intricate shapes, contours, and ultra-fine details, making it essential for high-precision custom workpieces.
  10. Precision Tool and Die Manufacturing The UPG-NC series is ideal for crafting tools and dies that require extreme accuracy and smooth finishes, meeting the rigorous demands of industries such as automotive and aerospace.
