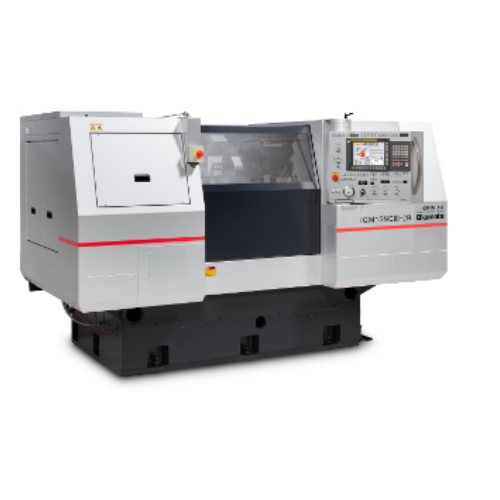

CNC Precision Internal Grinding Machine IGM15NCⅢ-2B

SERIES line-up

IGM2MB

Concept

Improved accuracy, operability, performance and productivity.

Feature

  • Storage of Up to 36 Grinding Conditions The IGM-NCⅢ/15NCⅢ-2 series allows users to store up to 36 grinding conditions, including settings for switches and table speed. This feature enhances efficiency by enabling quick and easy recall of frequently used configurations.
  • Precision Positioning with Servo Motor Drive and Linear Guideway Equipped with a ball screw driven by a servo motor and a linear guideway for table longitudinal motion, the machine delivers precise positioning, particularly for grinding at blind hole ends. This hydraulic-free design reduces maintenance requirements while improving accuracy.
  • Intuitive Table Positioning with Teaching System The machine features an intuitive teaching system, allowing operators to set table positions using symbolic guidance displayed at the bottom of the screen. This user-friendly design simplifies complex setups, ensuring consistent and repeatable results.
These features collectively make the IGM-NCⅢ/15NCⅢ-2 series a high-performance solution for precision grinding, offering reliability, accuracy, and efficiency for a wide range of applications.

Uses of the CNC Precision Internal Grinding Machine IGM15NCⅢ-2B


  • The CNC Precision Internal Grinding Machine IGM15NCⅢ-2B stands out as a versatile and high-performance solution for industries that demand precision and efficiency in internal grinding applications. Designed for reliability, accuracy, and ease of use, this machine caters to a variety of sectors. Below are its primary uses and applications:

    1. High-Precision Internal Grinding

    The IGM15NCⅢ-2B excels in grinding the internal surfaces of cylindrical parts with unmatched precision. This is particularly useful for industries that require tight tolerances and smooth finishes, such as:
    • Automotive: Grinding engine components, transmission parts, and bearings.
    • Aerospace: Fine-tuning turbine blades, gears, and other critical components.
    • Medical: Machining parts for surgical instruments and implants with micron-level precision.

    2. Manufacturing Complex Shapes

    This CNC machine is capable of handling intricate shapes, such as tapers, grooves, and contours. These capabilities make it indispensable in industries like:
    • Tool and Die Making: Creating molds and tools that require detailed internal configurations.
    • Hydraulics and Pneumatics: Producing valves, cylinders, and pistons with complex geometries.

    3. Enhanced Production Efficiency

    The dual-axis design of the IGM15NCⅢ-2B allows simultaneous machining operations, reducing production time. It's particularly beneficial for:
    • Mass Production: Ideal for high-volume production of consistent-quality parts in sectors like consumer electronics and automotive.
    • Custom Prototyping: Allows flexibility in design alterations without sacrificing precision.

    4. Superior Finish for Specialized Materials

    The machine is equipped to handle a wide range of materials, such as hardened steel, ceramics, and superalloys. This versatility supports industries requiring superior finishes, including:
    • Energy Sector: Grinding components for turbines and generators.
    • Defense: Precision machining for weapon systems and armored vehicles.

    5. User-Friendly CNC Programming

    The intuitive CNC interface simplifies the programming process, making it accessible for both experienced and novice operators. This adaptability benefits:
    • Custom Manufacturers: Reducing setup times for one-off or low-batch projects.
    • Educational Institutions: Training new machinists in precision grinding techniques.

    6. Maintenance of Critical Components

    The IGM15NCⅢ-2B is also used in repair and refurbishment, restoring worn-out internal surfaces to their original specifications. Common applications include:
    • Industrial Equipment: Overhauling pumps, compressors, and machine spindles.
    • Railway Systems: Grinding internal parts of wheels and axles.
    The CNC Precision Internal Grinding Machine IGM15NCⅢ-2B represents a blend of innovation and reliability, empowering industries to meet the most demanding standards of quality and efficiency. Whether for mass production or intricate custom designs, this machine is an investment in precision and productivity.
