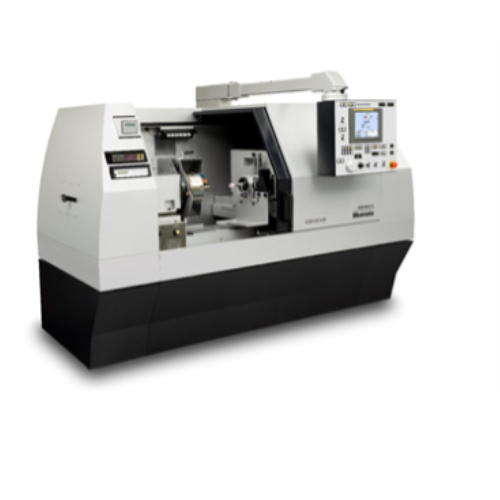

CNC Precision Internal Grinding Machine IGM-NCⅢ/15NCⅢ-2 series

SERIES line-up

IGM15NCⅢ・IGM15NCⅢ-2

Concept

Shorten grinding data entry process by automatic editing function. Contouring form as well as universal form and carbide contouring grinding on our unique software.

Feature

  • Innovative Program Software for Versatile Grinding Applications The IGM-EXⅢ series boasts proprietary software capable of handling contouring form, universal form, and carbide contouring grinding with precision. This feature ensures exceptional adaptability for complex machining requirements.
  • User-Friendly Touchscreen Interface The machine’s intuitive touch screen interface simplifies operations by reducing the reliance on manual switches. Inputting data is streamlined, ensuring efficiency and ease of use for operators.
  • Taper and Contouring Grinding with 2-Axis Simultaneous Control Optional software for the IGM15NCIII model enables high-precision taper and contouring grinding through 2-axis simultaneous control. The system supports data storage, offering a high level of customization and repeatable grinding conditions for consistent performance.
  • Dual-Spindle Unit for Comprehensive Grinding The IGM15NCIII-2 model features two spindle units, allowing for seamless grinding of step bores, faces, and outer diameters (O.D.) in a single chucking. This configuration enhances concentricity, perpendicularity, and overall accuracy, ensuring optimal results for demanding applications.
  • Scale Feedback for Enhanced Sizing Accuracy Incorporating scale feedback for wheel infeed, the IGM-EXⅢ series achieves unparalleled sizing precision. This innovation is critical for industries requiring components with strict dimensional tolerances.
By integrating these advanced features, the IGM-EXⅢ series sets a new benchmark in internal grinding technology, combining efficiency, accuracy, and user-friendliness to meet the demands of modern machining environments.

Uses of the CNC Precision Internal Grinding Machine IGM-NCⅢ/15NCⅢ-2 Series


  • The IGM-NCⅢ/15NCⅢ-2 Series CNC Precision Internal Grinding Machine is designed for superior performance in internal grinding applications. Its advanced features and cutting-edge technology make it an indispensable tool for industries requiring high precision and efficiency. Below are the primary uses of this versatile machine:
    1. High-Precision Internal Grinding The IGM-NCⅢ/15NCⅢ-2 series is engineered for grinding internal diameters with remarkable accuracy. It delivers consistent results for parts with demanding tolerance requirements, such as bores, cylinders, and sleeves.
    2. Step Bore, Face, and Outer Diameter Grinding in One Chucking The dual-spindle unit in the 15NCⅢ-2 model enables simultaneous grinding of step bores, faces, and outer diameters (O.D.) in a single chucking. This feature enhances concentricity and perpendicularity, making it ideal for manufacturing complex components.
    3. Contouring and Taper Grinding With optional 2-axis simultaneous control software, the machine performs precision contouring and taper grinding. This capability is essential for creating intricate geometries in parts such as molds, dies, and precision tools.
    4. High-Performance Carbide Grinding The IGM-NCⅢ series supports carbide contouring and grinding, meeting the needs of industries that demand durability and hardness in their components, such as aerospace, automotive, and heavy machinery.
    5. Medical Equipment Manufacturing This machine is crucial in producing high-precision medical components like implants and surgical tools. Its ability to maintain strict tolerances ensures safe and reliable medical device production.
    6. Efficient Grinding for Mass Production and Prototypes The CNC capabilities of the IGM-NCⅢ series allow it to adapt seamlessly to both large-scale production runs and small-batch prototypes, offering flexibility to manufacturers across industries.
    7. Advanced Grinding for Automotive Applications From pistons and gears to hubs and bushings, this series is pivotal in producing precision automotive parts that require consistent performance and reliability.
    8. Superior Surface Finishing The machine's advanced grinding capabilities ensure high-quality surface finishes, meeting the stringent requirements for both aesthetic and functional applications in various industries.
    9. Enhanced Productivity with Scale Feedback By incorporating scale feedback for the wheel infeed, the machine achieves exceptional sizing accuracy, improving efficiency and reducing material waste.
    10. Aerospace Component Fabrication The IGM-NCⅢ/15NCⅢ-2 is indispensable for creating internal components for the aerospace industry, including engine parts and structural elements, where precision is critical for safety and performance.
