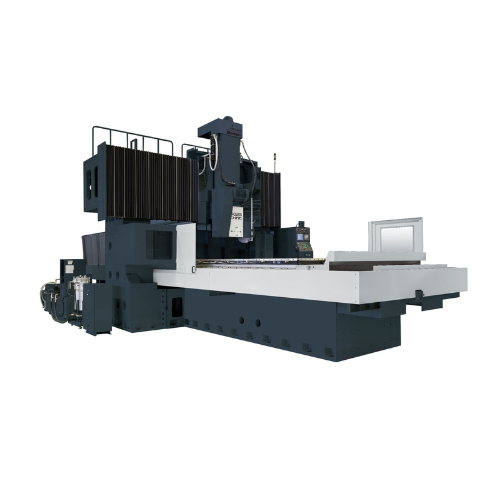

CNC Double Column Type Surface Grinding Machine PSG4025CHNC

SERIES line-up

PSG2010CHNC・PSG3010CHNC・PSG2015CHNC・PSG3015CHNC・PSG4015CHNC・ PSG3020CHNC・PSG4020CHNC Complex machine line-up Swivel Spindle specification machine　PSG-CVNC(V:Vertical),  2-Spindle specification machine　 PSG-CHVNC(HV:Horizontal＆Vertical)

Concept

  Widely Line-up Double Column Type Surface Grinding Machine series.

Feature

  • Mechanical Adjustment Mechanism: Features a mechanical adjustment system for cross rail straightness, enabling crowning grinding to counteract bending caused by head travel. Allows for fine adjustments before assembly and provides the advantage of correcting aging-related errors after installation.
  • Compact and Versatile Design: The CHNC series offers a compact machine designed for multipurpose use, tailored to meet diverse customer demands.
  • Polishing and Lapping Options: Provides polishing or lapping machines for achieving superior finishes on high-end products such as photo masks and coating dies when grinding alone is insufficient.

Uses of the CNC Double Column Type Surface Grinding Machine PSG4025CHNC


  • Precision Grinding for Large Workpieces
    • Ideal for machining oversized components with exceptional accuracy, including those used in industries like aerospace, automotive, and heavy machinery.
  • High-Precision Mold and Die Manufacturing
    • Perfect for creating molds and dies requiring flawless surface quality and precise dimensional accuracy.
  • Flat Surface Finishing
    • Delivers consistent flatness and superior finishes for metal sheets, plates, and structural parts.
  • Crowning and Contouring Capabilities
    • Enables advanced grinding techniques such as crowning, multiple grinding, and free-form plunge or contouring for components with specific profiles or curvature requirements.
  • Industrial and Heavy Machinery Applications
    • Suitable for grinding large parts used in heavy-duty industries like construction, shipbuilding, and energy production.
  • Semiconductor and Electronics Equipment
    • Provides the precision required for grinding semiconductor parts, LCD panels, and other electronic components.
  • On-Machine Measurement and Compensation
    • Equipped with systems for on-machine measurement and automatic compensation, ensuring high accuracy and consistent quality.
  • Mirror Finish and High-End Surface Requirements
    • Capable of achieving mirror finishes for high-end products, such as optical components, coating dies, and photo masks.
  • Tool and Cutter Sharpening
    • Suitable for sharpening large cutting tools and precision machining equipment, maintaining their performance and durability.
  • Restoration and Maintenance Work
    • Designed for resurfacing and restoring worn or damaged surfaces on industrial components, extending their service life and performance.
  • Energy-Efficient Operations
    • Incorporates advanced systems to optimize energy usage, reducing operational costs while maintaining precision.
  • Versatile Material Applications
    • Can handle a wide range of materials, including steel, cast iron, non-ferrous metals, and composites, catering to diverse manufacturing needs.
The PSG4025CHNC is a versatile and high-performance machine, making it indispensable for industries that demand precision, reliability, and scalability in their grinding processes.
