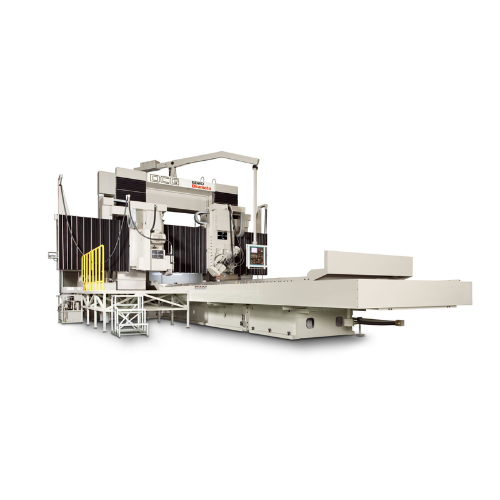

CNC Double Column Type Surface Grinding Machine DCG8020NC

SERIES line-up

DCG4015NC・DCG6015NC・DCG8015NC・DCG10015NC・DCG4020NC・DCG6020NC・DCG8020NC・DCG10020NC

Concept

Best machine for complex slideway of machine tool.

Feature

  • Crossrail Adjustment Mechanism: Features a specially designed adjustment system to ensure high accuracy across the entire table area. This mechanism allows for precise straightness correction, even during crowning grinding to counteract bending caused by head travel.
  • Mechanical Aging Error Correction: Equipped with a mechanical adjustment mechanism for crossrail straightness, enabling the correction of aging-related errors without the need for disassembly.
  • Optional Crowning System: Offers a crowning system as an optional feature, tailored to suit the frame requirements of machine tools.

Uses of the CNC Double Column Type Surface Grinding Machine DCG8020NC


  • Precision Grinding for Large Workpieces
    • Designed for high-precision machining of large components, making it ideal for industries like aerospace, automotive, and heavy equipment manufacturing.
  • Tool and Die Manufacturing
    • Ensures exceptional accuracy and surface finishes required for creating molds and dies used in high-performance applications.
  • Surface Finishing for Metal Sheets and Plates
    • Provides uniform surface grinding for large sheets and plates, enhancing flatness and finish quality.
  • Crowning and Contour Grinding
    • Capable of advanced grinding tasks such as crowning and contouring, meeting specific shape and profile requirements for complex components.
  • Heavy-Duty Industrial Applications
    • Perfect for grinding oversized machine parts used in construction machinery, shipbuilding, and renewable energy sectors.
  • High-End Surface Preparation
    • Delivers mirror finishes for high-precision products like optical lenses, coating dies, and photo masks.
  • On-Machine Measurement and Compensation
    • Integrates on-machine measurement systems, allowing for real-time adjustments to ensure consistent accuracy and surface quality.
  • Renewal and Maintenance Grinding
    • Suitable for restoring and maintaining large industrial components, ensuring their longevity and optimal performance.
  • Energy-Efficient Performance
    • Equipped with advanced technology for energy-efficient operations, minimizing heat generation and operational costs while maintaining precision.
  • Versatile Material Processing
    • Compatible with a range of materials, including steel, cast iron, non-ferrous metals, and composites, catering to diverse manufacturing needs.
  • Complex and Multiple Grinding Operations
    • Supports multiple grinding techniques such as plunge grinding, free-form grinding, and multi-surface finishing in a single setup.
  • Industrial Applications Requiring High-Precision Surfaces
    • Essential for industries producing critical components, such as aerospace turbines, large mechanical bearings, and semiconductor equipment parts.
The DCG8020NC is a robust and versatile solution for high-precision grinding tasks, offering reliability and adaptability for demanding industrial applications.
